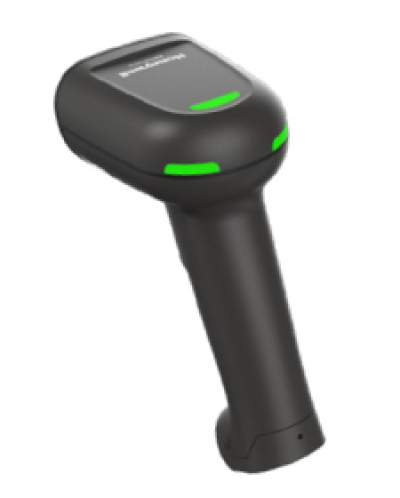

Barcode scanner Xenon 1960

The Xenon Ultra for retail is a premium evolution of the widely known legacy Xenon and Xenon XP general-purpose scanners, taking our industry-leading scan performance and reliability one step further. The Xenon Ultra 1960g incorporates Honeywell’s next generation of scanning capability – allowing retailers to stay productive and keep customer service as their top priority. With optional dual-camera extended range (XR) models, retailers can use the scanner for both up-close and extended bottom-of-the-basket scanning. Available in a cordless Bluetooth configuration which offers premium accessory upgrades such as interchangeable power sources, contactless charging and magnetic retention capabilities.


Dimensions: 108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)

Weight: 147.2 g (5.2 oz)

Input Voltage: 1960: 4.4V DC to 5.5V DC

Operating Power (Charging)

Bases: 2.5W (500 mA @ 5V DC)

Host System Interfaces: USB, Keyboard Wedge, RS-232

User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)


Operating Temperature: 0°C to 50°C (32°F to 122°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 0% to 95% relative humidity, non-condensing

Tumble: 2,000 at 0.5 m (1.6 ft)

Drop (Multiple): 1.8 m (6 ft) to concrete across the operating temp range

ESD (Scanners and Cradles: ±8 kV indirect coupling plane, ±15kV direct air

Environmental Sealing (Scanner):

IP52 Light Levels: 0 to 100,000 lux


Image Sensor: 1280 x 1080 pixel array

Motion Tolerance: SR/XR – 4 m/sec HD – 3.4 m/sec

Imager Field of View: SR/HD – Horizontal: 42°; Vertical: 36°

Print Contrast: As low as 15% Roll, Pitch,

Skew: ±360°, ±65°, ±65°

Decode Capabilities:

Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies

Note: Decode capabilities dependent on configuration

Illumination: White 2700K

LED aimer light source: 525 nm

Image Quality: 109 PPI on an A4 document

Object Detection: Configurable 3” default when placed in stand 6” with configuration change when placed in stand

WARRANTY 1960 (Corded): 5-year factory warranty
